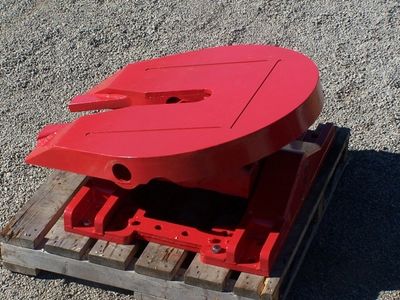

1053-1 HEAVY DUTY FIFTH WHEEL
SPECIFICATIONS
Overall Length: 43 inch (109 cm)
Width: 38 inch ( 96.5 cm)
Height: 15 inch ( 28 cm)
Weight: 1600 lbs (725 kg)
Pull Capacity: 600,000 lbs (272,000 kg)
Vertical Load: 400,000 lbs (181,436 kg)
FEATURES
Double oscillating
Rock lock
3 1/2 inch SAE king pin
High tensile Steel
Custom mounting
Industrial coating
.jpg/:/rs=w:400,cg:true,m)
1496-1 HEAVY DUTY FIFTH WHEEL
SPECIFICATIONS
Overall Length: 43 inch (109 cm)
Width: 38 inch ( 96.5 cm)
Height: 11 inch ( 28 cm)
Weight: 1000 lbs (453 kg)
Pull Capacity: 600,000 lbs (272,000 kg)
Vertical Load: 400,000 lbs (181,500 kg)
FEATURES
Single oscillating
Rock lock
3 1/2 inch SAE king pin
High tensile Steel
Custom mounting
Industrial coating
.jpg/:/rs=w:400,cg:true,m)
1167-1 HEAVY DUTY FIFTH WHEEL
SPECIFICATIONS
Overall Length: 43 inch (109 cm)
Width: 32.5 inch ( 96.5 cm)
Height: 8.5 inch ( 21.5 cm)
Weight: 755 lbs (342 kg)
Pull Capacity: 500,000 lbs (227,000 kg)
Vertical Load: 250,000 lbs (113,400 kg)
FEATURES
Single oscillating
Rock lock
3 1/2 inch SAE king pin
High tensile Steel
Custom mounting
Industrial coating
943-1 HEAVY DUTY FIFTH WHEEL
SPECIFICATIONS
Overall Length: 39 inch (99 cm)
Width: 41.25 inch ( 105 cm)
Height: 13.75 inch ( 35 cm)
Weight: 1050 lbs (476 kg)
Pull Capacity: 500,000 lbs (227,000 kg)
Vertical Load: 300,000 lbs (136,400 kg)
FEATURES
Double oscillating
Jaw type
3 1/2 inch SAE king pin
High tensile Steel
Custom mounting
Industrial coating
