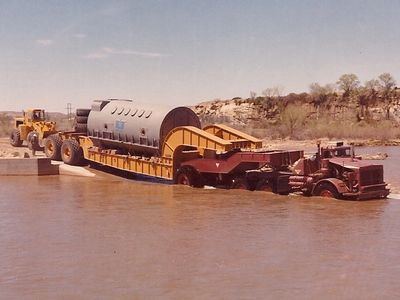

H.E.T.

70 Ton Transporter

Model 77-0010B

SPECIFICATIONS

Uniform Payload Capacity: 70 short tons (140,000 lbs.)

Length: 36' 5" (ramps in stowed position) approx. (11100mm) 41' 8" (ramps in loading position) approx. (12700mm)

Height of Load Deck: 64" (laden) (1624mm)

King Pin Height: 64" (laden) (6477mm)

Load Deck Length: 19' 3" (6477mm)

Load Deck Width: 13' 3" (overall) (4036mm) 12' 3" (inside of stake pockets) (3734mm)

Ramp Loading Angle: 20 degrees maximum
