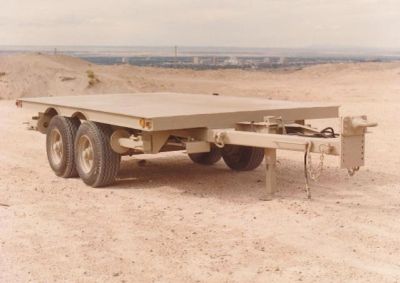

1.5 Ton Flatbed Trailer
SPECIFICATIONS
Overall Trailer Length: 180" (457.2 cm)
Bed Height: 32" laden (81.28 cm)
Bed Width: 95" (241.3 cm)
Gross Weight including playload: 4,000 lbs. (1,815 kgs)
FEATURES
The trailer is capable of operating with full rated payload over cross-country terrain at speeds up to 10 mph (16 km/h) over unimproved roads at speeds up to 20 mph (32 km/h) and over improved roads (highway) at speeds up to 50 mph (80 km/h).
3 Ton Flatbed Trailer
SPECIFICATIONS
Overall Trailer Length: 232" (589.2 cm)
Drawbar Length: 66" (167.6cm)
Overall Height: 87" (220 cm)
Overall Width: 96" (243.8 cm)
Gross Vehicle Weight: 6691 lbs. (3,035 kgs)
Gross Vehicle Weight: 7486 lbs. (3,397 kgs)
FEATURES
The trailer is capable of operating with full rated payload over cross-country terrain at speeds up to 10 mph (16 km/h), over unimproved roads at speeds up to 20 mph (32 km/h) and over improved roads (highway) at speeds up to 50 mph (80 km/h).

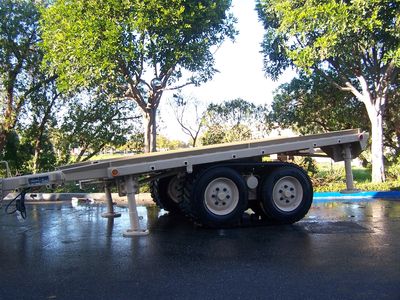

M1048-A1 Transporter
SPECIFICATIONS
Overall LG: 238”(604cm)
Deck LG: 13’3” (405 cm)
Overall Width: 96”(243cm)
Deck Height: 45” (114 cm)
Max. Payload: 21,500 lbs.
Suspension: MTS System
Tires (8) Size: 245/70R
Brakes: AIR
Electrical: 24 VDC
FEATURES
The M1048A1 MTSS (Medium Track Suspension System) Trailer is designed for improved mobility of the AN/TPQ-37 radar system when traveling over soft soil, sand, mud and snow terrain. The M1048A1 trailer is capable of carrying a 6 Ton payload and can be towed both on and off road.
